Sony Brings Global Shutter Technology to APS-C sensors

Share

Global Shutter

*** BREAKING: First Specs and Accurate Price Indication of Fujifilm GFX 50R here on fujirumors.com ***

Sony has expanded its global shutter line-up (Pregius sensors) to APS-C, for both, monochrome and RGB sensors (see Sony hereMonochrome Pregius PDF / RGB Pregius PDF).

Previously it was available only for 1″ sensors or smaller.

Follow FujiRumors: FacebookInstagram, RSS-feed, Youtube and Twitter
Join our User Groups: Fujifilm X-T, GFX, X-H, X-Pro, X-E and X100 line
New Facebook Pages: Fujifilm X-T, Fujifilm X-H and Fujifilm GFX

Here are all details:

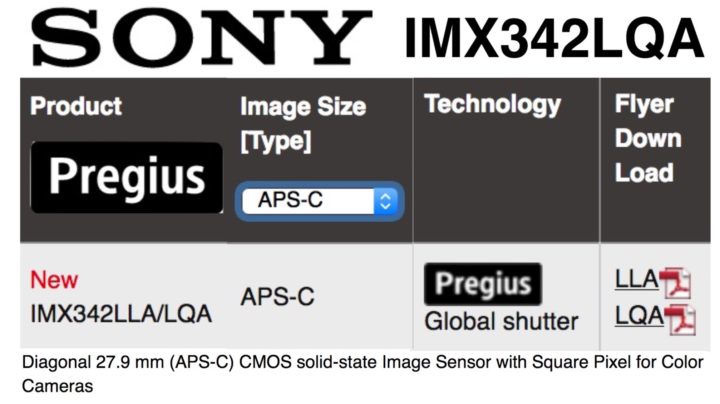

The IMX342LQA is a diagonal 27.9mm (APS-C) CMOS active pixel type solid-state image sensor with a square pixel array and 31.49M effective pixels. This chip features a global shutter with variable charge-integration time. This chip operates with analog 3.3 V, digital 1.2 V, and interface 1.8V triple power supply, and has low power consumption. High sensitivity, low dark current and low PLS characteristics are achieved. (Applications: FA cameras, ITS cameras)

  • CMOS active pixel type dots
  • Built-in timing adjustment circuit, H/V driver and serial communication circuit
  • Global shutter function
  • Input frequency
  • 37.125 MHz / 74.25 MHz / 54 MHz
  • Number of recommended recording pixels: 6464 (H) × 4852 (V) approx. 31.36 M pixels
    Readout mode
    All-pixel scan mode
    Vertical / Horizontal 1 / 2 Subsampling mode
    ROI mode
    Vertical / Horizontal ‐ Normal / Inverted readout mode
  • Readout rate
    Maximum frame rate in
    All-pixel scan mode: 8 bit 35.4 frame/s, 10 bit : 35.4 frame/s, 12 bit : 25.8 frame/s
  • 8-bit / 10-bit / 12-bit A/ D converter
  • CDS / PGA function
    0 dB to 24 dB: analog gain (0.1 dB step)
    24.1 dB to 48 dB: analog gain: 24 dB + digital gain: 0.1 dB to 24 dB (0.1 dB step)
  • I/O interface
    SLVS (2 ch / 4 ch / 8 ch switching) output (594 / 297 Mbps per ch)
    SLVS – EC (1 Lane / 2 Lane / 4 Lane / 8 Lane) output (2.376 / 1.188 Gbps per Lane)
  • Recommended lens F number: 2.8 or more (Close side)
  • Recommended exit pupil distance: –100mm to – ∞

via image-sensors-world
