Fujinon XF7mm F4, XF8mm F3.5, XF9mm F2.8 and XF10mm F2.8 Patents Found


Back at the X Summit in May, Fujifilm announced the Fujinon XF 8mm f/3.5.

FujiRumors already compared the XF8mmF3.5 in size to other Fujinon lenses here.

It is no surprise that during the development for this lens Fujifilm made several versions of it, and those versions now appeared as patents.

  • XF7mm F4
  • XF8mm F3.5
  • XF9mm F2.8
  • XF10mm F2.8

Looks like Fujifilm went for the golden middle: not the widest nor the longest, not the slowest nor the fastest: hence, XF 8mmF3.5. A good decision if you ask me, but you are free to tell us your opinion in the comments.



In recent years, image lenses with wide-angle, miniaturization and good optical performance have been requested. This disclosure provides a imaging lens with a wide angle, a smaller size, and good optical performance, and a imaging device with this imaging lens.

via asobinet via

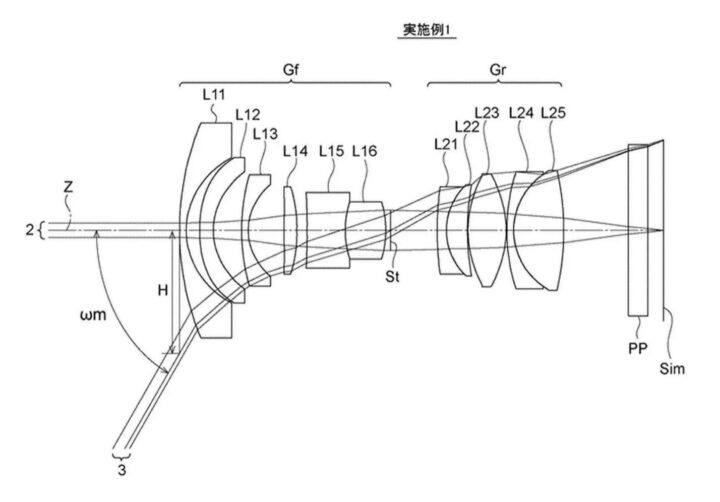

Example 1

  • Focal length: 8.245
  • F value: 3.60
  • Angle of view: 123.6
  • Back Focus: 13.808

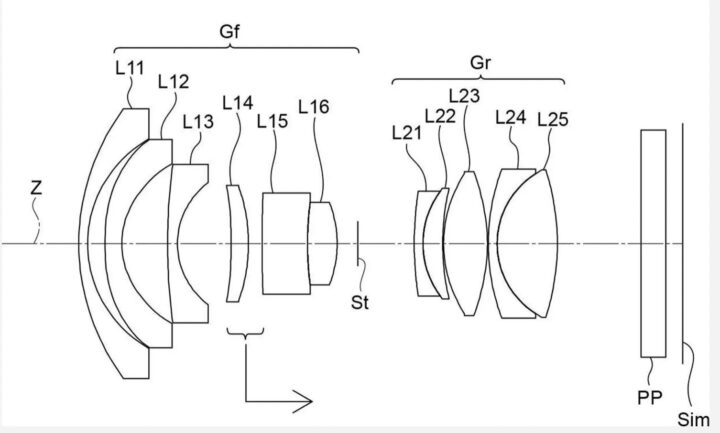

Example 2

  • Focal length: 7.216
  • F value: 4.12
  • Angle of view: 130.6
  • Back Focus: 13.438

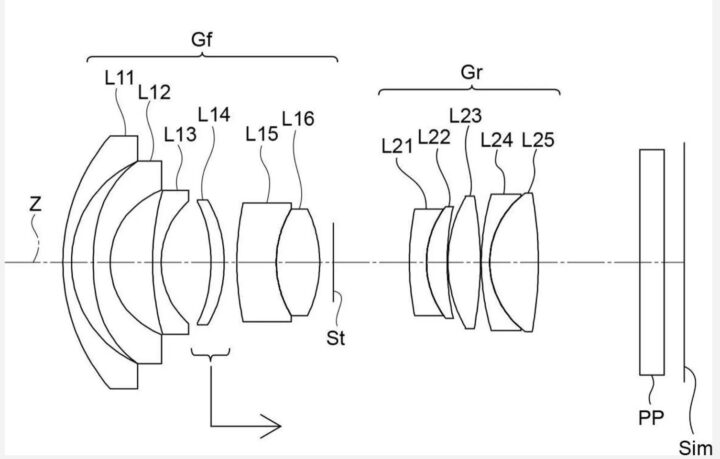

Example 3

  • Focal length: 9.273
  • F value: 2.88
  • Angle of view: 118.8
  • Back focus: 16.171

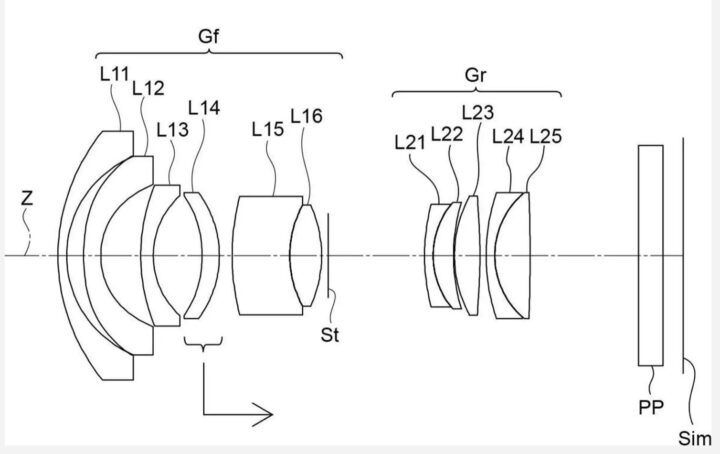

Example 4

  • Focal length: 10.341
  • F value: 2.88
  • Angle of view: 113.4
  • Back focus: 16.911
