Fujinon 14-26mmF5-7 and 12-26mmF5-6.8 APS-C Lens Patents Spotted

May 13, 2025
Rumors
0 Comments

Compact, affordable and wide lenses designed mainly for video use are a popular option at other brands:

And taking a look at the latest patents surfaced on the web, it seems that Fujifilm is investigating this possibility too, as reported by the Japanese website asobinet.

The patents are:

Fujifilm 14-26mmF5-7
Fujinon 12-26mmF5-6.8

Asobinet speculates that these could be patents for low-priced, small and lightweight lenses for video and powezooms like the XC15-45mm F3.5-5.6 OIS PZ.

Anyway, these are just patents, and out of hundreds of patents I have shared in over a decade here on FujiRumors, I think I remember only one become reality before it was announced.

A more more reliable indication on what Fujifilm is working on is given to us by Fujifilm directly, when they made a list of 10 potential lenses, one of them has already been released and the other one is coming in not too distant future, too.

So there are 8 more lenses that could come and you can vote on in the survey linked in the article below.

Future Fujinon X Mount Lenses Proposed by Fujifilm (with Suggested Specs) – Vote What Should Be Next

Patent related articles:

Patent Details

Outline

[Public number] P2025073886
[Release date] 2025-05-13
[Name of the invention] Multiplier optic system and imaging device
[Apply date] 2023-10-27
[Applant] [Identification number] 306037311
[Name or title] Fujifilm Corporation
[Background technology] [0002] Previously, the variable-multiplier optical system described in patent documents 1 and patent documents 2 below is known as a variable-multiplier optical system that can be used for imaging devices such as digital cameras.
[0004] A variable magnification optical system that is small and lightweight and maintains good optical performance throughout the variable magnification is required. These requirements are increasing year by year.
[0005] This disclosure provides a small and lightweight transformer optical system that retains good optical performance throughout the variable multiplex and an imaging device equipped with this variable multiple optical system.

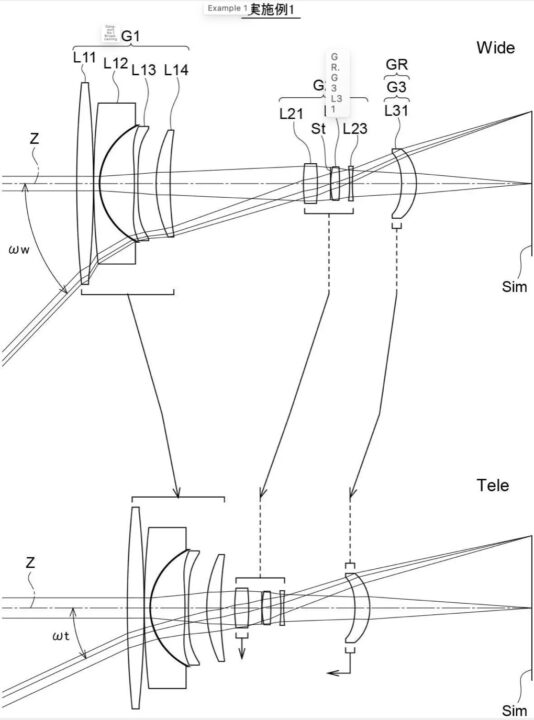

Example 1

Focal length: 14.65-26.38
F value: 5.15-6.59
Angle of view: 97.4-54.6
Back focus: 20.66-29.00

Example 3

Focal length: 13.40-22.78
F value: 5.12-5.93
Angle of view: 102.8-62.2
Back focus: 22.56-26.09

Example 5

Focal length: 12.36-25.95
F value: 5.11-6.72
Angle of view: 107.0-55.2
Back focus: 17.13-22.58

Example 6

Focal length: 11.38-25.03
F value: 5.11-6.96
Angle of view: 111.0-55.4
Back focus: 17.03

Example 19

Focal length: 13.52-29.74
F value: 4.61-5.65
Angle of view: 102.2-47.0
Back focus: 10.40

Fujinon 12-26mmF5-6.8 Fujinon 14-26mmF5-7
