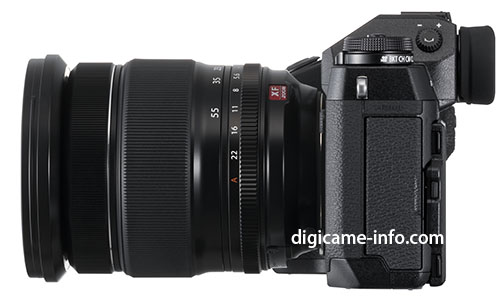

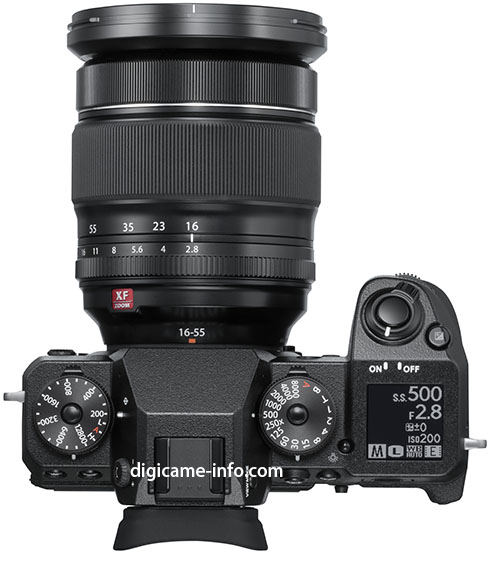

Now also digicame-info leakes images of the Fujifilm X-H1.
They also makes a summary of the main specs. Below you will find again the full press release google translated in English.
For the Full specs translated in English, check out my dropbox X-H1 Specs File.
– 5-axis hand shake correction with effect of up to 5.5 steps
– Electronic front curtain shutter, electronic shutter
– 24.3 MP, X-Trans CMOS III sensor
– X-Processor PRO
– a rugged magnesium alloy body
– EVF is 3.69 million dots, the maximum framelet is 100 fps, the response is 0.005 seconds
– 3 inch 1.04 million dot touch type liquid crystal monitor
– Film Simulation ETERNA
– Cinema 4K 24 fps, 4 K 30 fps
– 120 fps slow motion video in full HD
– F-log (can be recorded on F-Log directly to SD card at 4K)
– Video bit rate up to 200 Mbps
– Built-in high-performance microphone
– Improvement of AF algorithm
– ISO 200 – 12800 (ISO100, 25600, 51200 in extension)
– Dual card slot
– size 139.8 x 97.3 x 85.5
– Weight 623 g (including battery 673 g)
Powerful and versatile – the mirrorless system camera FUJIFILM X-H1 for professional photographers and videographer
Kleve, February 15, 2018. Professional picture quality, robust housing and advanced video functionality – with the FUJIFILM X-H1 mirrorless system camera, FUJIFILM has added to its award-winning X series the hitherto most powerful model. It offers a number of features tailored to the specific needs of professional photographers and videographers.
The X-H1 has a newly developed, extremely robust housing and is the first model of the X series to have an integrated 5-axis image stabilization (IBIS), which can be combined with FUJINON XF lenses up to 5.5 steps * 1 longer exposure time. times allowed. In addition, it has a flicker reduction mode, which guarantees reliable exposure results even in difficult lighting conditions, thereby significantly improving, for example, the quality of indoor sports photography.
The camera fits perfectly with the new professional FUJINON cine lenses MKX18-55mmT2.9 and MKX50-135mm T2.9 for the X bayonet, both of which are announced for May 2018. It is of course also compatible with all existing XF and XC series lenses, which will be available by the end of the year the high-speed telephoto lens XF200mmF2 R LM OIS WR and the ultra-wide-angle zoom lens XF8-16mmF 2.8 R WR is extended.
The FUJIFILM X-H1 will be available from March 2018 onwards.
Special features of the FUJIFILM X-H1:
Integrated Image Stabilization (IBIS)
The internal image stabilization system (IBIS), which is being used in an X Series camera for the first time, features three axial acceleration sensors, three axial gyro sensors and a very powerful dual processor, which performs around 10,000 calculations per second based on the measured data. In combination with the effective compensation mechanism, a particularly precise image stabilization and thus an uncompromising image quality is achieved.
5-axis image stabilization is possible with all XF and XC lenses. It is also possible with lenses without their own optical image stabilization stabilization of up to 5.5 EV levels * 1 possible. With the XF lenses already available, stabilization of more than 5 EV levels is achieved with a few exceptions * 2.
This performance is made possible by the use of state-of-the-art production technologies. Thus, the individual components of the image stabilization unit are positioned using a laser measurement, which achieves twice as high precision as with conventional production processes. The inspection and adjustment of each individual camera ensures that the sensor is aligned absolutely parallel to the image plane, as in the case of XSeries models without integrated image stabilization.
The closure is based on a spring mechanism that minimizes the finest vibrations inside the case. With the electronic first shutter curtain and the completely electronic shutter, vibration effects can be almost completely eliminated.
Outstanding picture quality
The X-H1 features a 24.3-megapixel X-Trans CMOS III Sensor * 3 without low-pass filter and a powerful X-Processor Pro. The same combination is already being used in the internationally award-winning professional X Series models X-Pro2 and X-T2. Combined with the high-quality FUJINON lenses and FUJIFILM’s over 80 years of color reproduction experience, the X-H1 produces outstanding images. Even the finest details of the texture of objects are reproduced with a high plastic appearance, which captures the unique atmosphere of a scene in a special way
The case of the X-H1 is made of a sturdy magnesium alloy, which is 25 percent thicker than the X-T2. Although the camera is thus much more robust and stable, the housing is compact and lightweight thanks to a new mounting of the bayonet ring. The X-H1 is dust and splash-proof and fully functional even in cold temperatures down to minus 10 ° Celsius. The outer coating has a surface hardness of 8H due to larger particles and is thus particularly resistant to scratches.
Viewfinder and LCD
The electronic viewfinder with a resolution of 3.69 million pixels and a 0.75-fold magnification offers a leading performance in the segment of mirrorless system cameras. Due to the ultra-short response time of just 0.005 seconds and a fast frame rate of 100 frames per second, movements in the viewfinder image are extremely smooth. Even with dynamic subjects, the photographer can determine the image detail very precisely and compose the image exactly according to his own ideas.
The 7.6 cm (3-inch) touch-screen LCD on the back panel folds and pivots in three directions. It has 1.04 million pixels. As with the mirrorless medium format camera GFX 50S, the most important recording parameters are also easy to read at any time on the X-H1 on a 3.25 cm (1.28 inch) shoulder display.
At the suggestion of professional photographers, the operating concept of the X-H1 has been optimized compared to other models of the X series at a total of 19 points. So the camera is even better in the hand, for example, because of the larger grip.
The X-H1 triggers extremely quiet, making it ideal for situations where complete peace of mind is required, such as when taking in wildlife, at concerts or at weddings.
In addition, the buttons on the back of the camera have been enlarged and the grip of the dials improved. On the back there is a new AF-ON button, via which the autofocus can be activated by means of a thumb released from the trigger. With the help of the focus lever, the focus point can be very comfortably and quickly moved to the desired position.
Varied video features
The X-H1 is the ideal tool for multi-media productions that are standard in many areas today. Its video function has a total of 20 performance and performance improvements, making it ideal for professional filming.
It is the first camera in the X series to offer ETERNA film simulation, whose subtle color reproduction and richly detailed depths open up many creative freedoms for post-production users. In addition, for optimum picture quality, videos can be recorded at a high bitrate of 200 Mbps.
The camera also offers Cinema 4K recording in 17: 9 format, DCI 4K recording 4,096 x 2,160, Full HD recording at 120 fps for slow-motion (2x, 4x, 5x), F-flat Log * 4 and timecode recording and 4K F-Log recording directly to SD card, 400% dynamic range (approximately 12 f-stops) and a built-in high-quality microphone (24-bit / 48 kHz).
The flickering of artificial light, which is practically imperceptible to the human eye, for example in a sports hall, can falsify the result of the exposure measurement. To avoid this effect, the X-H1 has a flicker reduction mode that guarantees reliable metering results even in difficult lighting conditions.
Improved AF algorithm
The X-H1 autofocus features an improved algorithm that significantly improves the accuracy and speed of focusing in low-light situations. Thus, the sensitivity of the phase detection AF has been improved by about 1.5 f-stops from 0.5 LW to -1.0 LW, so that it can now also be used with lenses with aperture up to F11, for example the XF100-400mmF4.5- 5.6 R LM OIS WR with teleconverter XF2X TC WR.
Motifs with finely detailed surface structures (eg plumage or fur), which were previously not optimally captured by phase detection AF, can now be focused quickly and precisely.
In addition, the performance of the continuous AF (autofocus) during zooming has been significantly improved, which is advantageous, inter alia, in situations in which the main subject moves unpredictably (eg sports footage).
Optional accessories (sold separately)
Portrait battery grip VPB-XH1
The battery grip, designed exclusively for the FUJIFILM X-H1, maximizes the performance of the camera. It can be equipped, in addition to the battery in the camera, with two more batteries, so that up to 900 shots are possible. Boost mode speeds up the continuous shutter speed, frame rate and camera response time, and further minimizes the minimum blackout time. For 4K film recordings with a battery grip, the maximum recording time is extended to around 30 minutes.
The battery grip is dust- and splash-proof and ready for use at temperatures down to -10 ° Celsius. The controls include the shutter release button, focus lever, AE-L button, AF-ON button, thumbwheel, Q button, and Fn button. This allows the camera to be operated very comfortably even in portrait position.
The VPB-XH1 has a headphone jack to monitor sound during video recording. There is also a connection for the
Supplied power supply (AC-9VS), with which the two batteries in the handle can recharge within about 2 hours.
This large eyecup for the X Series and GFX Series cameras completely covers the area around the eye. The incidence of light rays is so effectively prevented and the photographer can observe the subject over a longer period of time concentrated. The eyecup can be rotated in 90 ° steps, so that it can be adapted for both the left or the right eye as well as for portrait shooting. An antistatic coating prevents the adhesion of dust and dirt.
* 1 In combination with the XF35mmF1.4.
* 2 Exceptions: XF10-24mmF4 R OIS, XF18-55mmF2.8-4 R LM OIS, XF55-200mmF3.5-4.8 R LM OIS
* 3 X-Trans is a trademark or registered trademark of FUJIFILM. The X-Trans CMOS III sensor uses a unique pixel array to reduce the appearance of moire and false color even without an optical low-pass filter.
* 4 The color space is defined according to ITU-R .
The main features of the FUJIFILM X-H1:
24.3 megapixel APS-C X-Trans CMOS III sensor
X Processor Pro
Integrated 5-axis image stabilization (IBIS)
Professional video features (including Cinema 4K)
Large electronic viewfinder with 3.69 million pixels
Folding and swiveling 7.6 cm (3-inch) touch-screen LCD with 1.04 million pixels
3.25 cm (1.8 inch) shoulder display
Particularly robust housing
o Splash-proof and dustproof o Cold-resistant bisminus10-degree
Improved AF algorithm
Dual memory card slot
Film simulation modes (including ETERNA)
Creative filter effects
RRP: 1.899, – Euro Available: from March 2018 Color: Black
FUJIFILM X-H1 + VBP-XH1
RRP: 2.199, – Euro Available: from March 2018 Color: Black
FUJIFILM X-H1 + FUJINON XF16-55mmF2.8 R LM WR
RRP: 2.898, – Euro Available: from March 2018 Color: Black
FUJIFILM X-H1 + VPB-XH1 + FUJINON XF16-55mmF2.8 R LM WR
RRP: 3.198, – Euro Available: from March 2018 Color: Black
